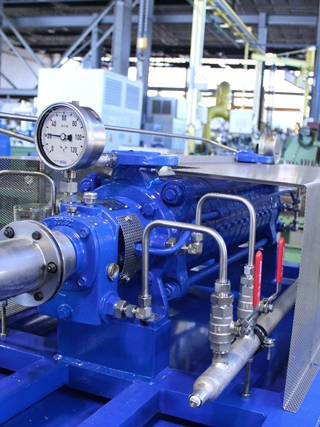

Horizontal multi-stage high-pressure centrifugal pump with closed impellers. The series includes several nominal diameters with different hydraulics that can be combined according to a modular system.

 GM
Q (m³/h)550
H (m)550
P (bar)64
T (° C)200

Horizontal high-pressure pumps of the GM series for the highest requirements

  • power stations
  • water treatment in industry and housing
  • pressure booster systems
  • circulation and condensate plants
  • heating installations
  • fire extinguishing installations
  • boiler feed installations
  • pumping cooling liquids and emulsions
  • chemical industry for pumping organic and inorganic liquids
  • petrochemical industry
  • reverse osmosis installations
GM - characteristic curve
  • Q = 550 m³/h
  • H = 550 m
  • P = 64 bar
  • T =  200 °C
  • multistage, horizontal centrifugal high-pressure pumps
  • sectional type of casing with closed impeller
  • axial thrust compensation by single-impeller balance or by means of balance piston
  • stationary bearing: pair of angular ball bearings for absorbing of remaining axial thrust
  • loose bearing: cylinder roller bearing
  • bearing lubrication: oil or grease
  • oil lubrication with or without cooling
  • cast iron
  • cast steel
  • 12% chromium steel
  • austenitic steel
  • duplex steel, super-duplex steel
  • special alloys
[Translate to English:]

GMZ / GMC

Q = 550 m³/h, H = 550 m, P = 64 bar, T = °C
