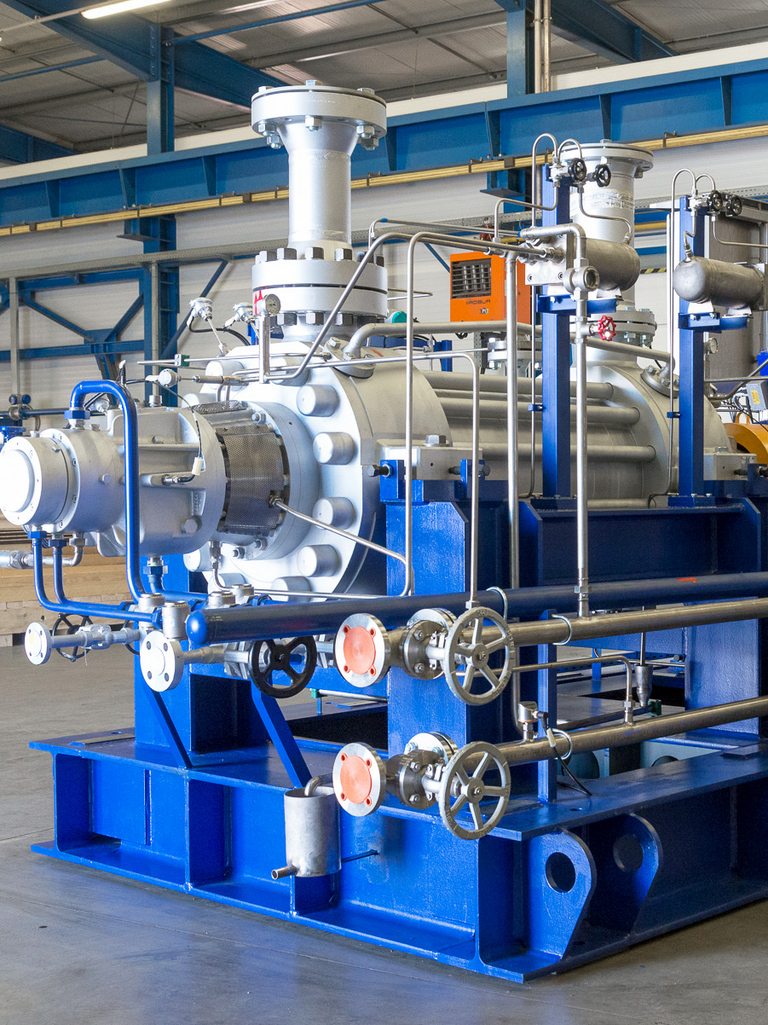

  • HP_StandardAusfuehrung__4_.jpg

    HP03


Horizontal, multistage ring-section high-pressure pump, between bearings design, as in-line version. The process pump has excellent hydraulic characteristics, a perfectly optimized performance field, and a modern structural design.

 HP
Q (m³/h)1 800
H (m)2 800
P (bar)300
T (° C)+250

The high-pressure pumps of the HP series are designed for pumping liquids in petrochemical plants, boiler feed water, condensate, reverse osmosis, oils, and fuels and are suitable for applications such as:

  • boiler feed water applications
  • applications in the oil and gas industry
  • booster application in all industrial branches
  • applications in refineries
  • water injection onshore and offshore
  • Q= 1800 m³/h
  • H= 2800 m
  • P= 300 bar
  • T= +250°C
HP quarter cut
  • feed-water pump with intermediate take-off  and optimized pressure design within the pump
  • version with NPSH impeller
  • axial thrust compensation by means of piston or double piston
  • bearings: antifriction bearings or slide bearings
  • Hydraulically balanced concept regarding the range of application, efficiency and  rotor dynamics
  • low vibration values
  • long service life
  • grey cast iron
  • ductile cast iron, ADI materials
  • cast steel
  • 12 % chromium steel
  • austenitic steel
  • special alloys

  • Standard Version
    Radial bearings: antifriction bearings
    Axial bearings: antifriction bearings
    Ring oil lubrication

  • Variant
    Radial bearings: slide bearings
    Axial bearings: antifriction bearings
    Ring oil lubrication

  • Variant
    Radial bearings: slide bearings
    Axial bearings: slide bearings
    Pressure oil lubrication
