BB2 - KGRD

  • BB2-KGRD.jpg

    Bild01_KGRD

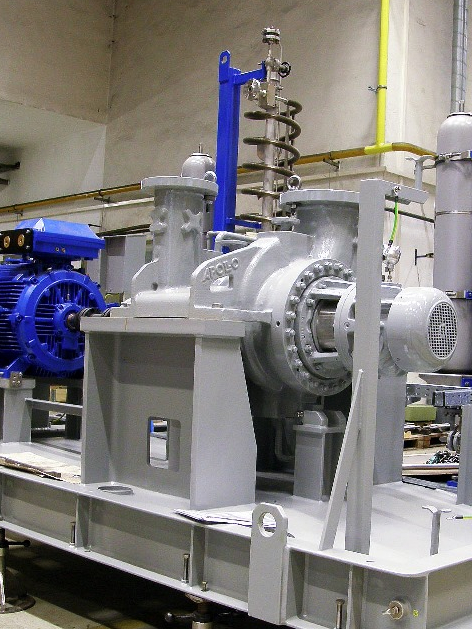

  • 2402769-24_KGRD__4__-_Kopie.JPG

    Bild02_KGRD

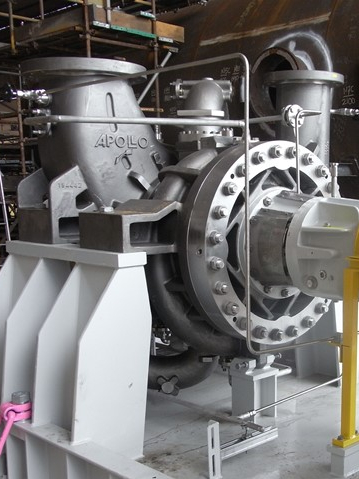

  • KRGD-Offshore__1_.JPG

    Bild03_KGRD

A blue symbol with a chemical compound represents the chemical industry.
The fertiliser industry is represented by a blue symbol showing a pile of earth with a plant growing out of it and fertiliser spread over it.
A blue symbol image with factories symbolises general industry.

Heavy-duty, radially split, double-stage process pump, between bearing version according to API 610 or ISO 5199. The double-flow suction impeller ensures for best NPSH values and the optimum rotor dynamics for safe operation.

 KGRD
Q (m³/h)1 600
H (m)600
P (bar)80
T (° C)+450

Due to heavy-duty between bearings design, lowest NPSH values, and highest energy efficiency the pumps of this range are suitable for a variety of applications:

  • applications in the oil and gas industry
  • offshore engineering
  • power plants
KGRD - characteristic curve
  • Q= 1600 m³/h
  • H= 600 m
  • P= 80 bar
  • T= + 450°C
BB2 KGRD
  • pump meets all requirements of API 610, type BB2
  • radial-split, centerline-supported
  • 1st impeller of single-flow or double-flow design
  • with bearings on both sides BB2
  • axial thrust compensation by means of back-to-back arrangement of impellers
  • bearing design: antifriction bearings or slide bearings
  • grey cast iron
  • ductile cast iron, ADI materials
  • cast steel
  • 12 % chromium steel
  • austenitic steel
  • special alloys
  • Inducer is an additional upstream impeller of screw type which provides very low NPSH values
  • Design of the inducers is selected according to specific application range of Customer.
  • In case of double-flow impeller upstream inducers are applied on both sides.
  • Standard Version
    Radial bearings: antifriction bearings
    Axial bearings: antifriction bearings
    Ring oil lubrication

  • Variant
    Radial bearings: slide bearings
    Axial bearings: antifriction bearings
    Ring oil lubrication

  • Variant
    Radial bearings: slide bearings
    Axial bearings: slide bearings
    Pressure oil lubrication
