KRE / KRES

  • KRE.jpg

    Bild01 - KRE

  • KRE_2.png

    KRE02

  • KRESB.png

    KRESB

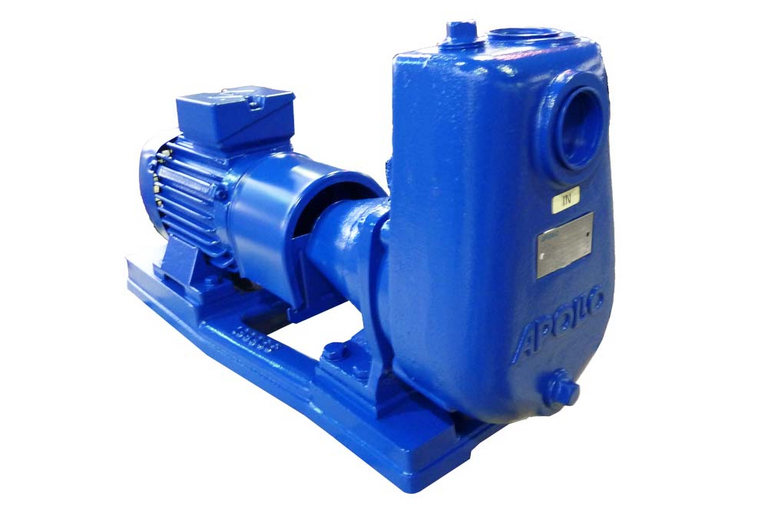

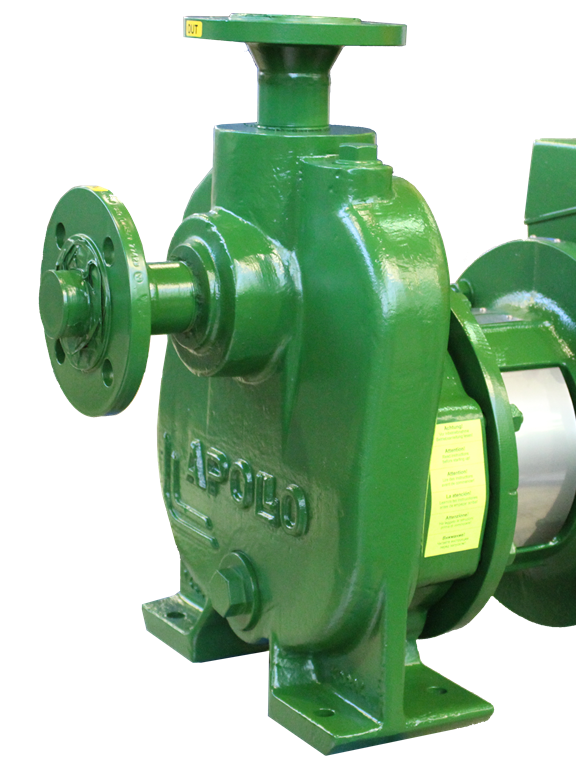

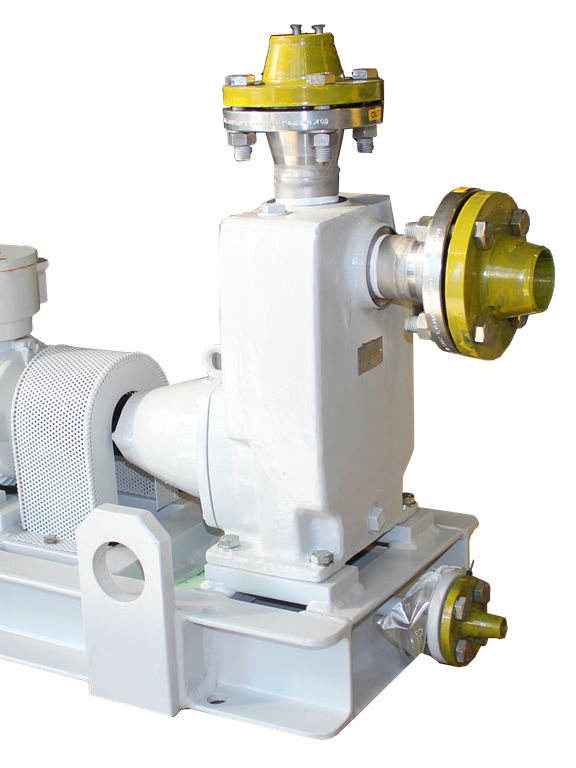

Single-stage self-priming horizontal centrifugal pump with heavy-duty bearing housing and open or closed multi-blade impeller. Construction according to the Apollo module system.

 KRE / KRES
Q (m³/h)100
H (m)60
P (bar)10
T (° C)95

Single-stage self-priming centrifugal pump for clean and contaminated liquids, also containing solids, as well as for inflammable, toxic and explosive media. Due to different material types they can be applied in a variety of fields such as

  • Industry in general
  • Sewage systems
  • Chemical industry
  • Building industry
  • Fuel or oil tanks
  • Port installations
  • Paint and plastics industry

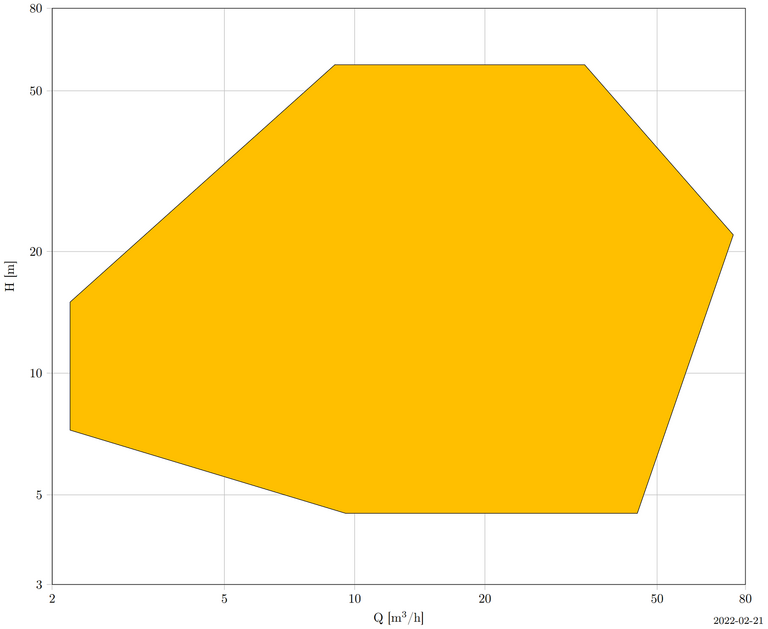

KRE/S - characteristic curves
  • Q = 100 m³/h
  • H = 60 m
  • P = 10 bar
  • T =  95°C
  • self-priming horizontal single-stage centrifugal pump
  • heavy-duty design of bearing housing
  • open or closed multi-vane impeller
  • axial suction branch, discharge branch radial to the top
  • antifriction bearings grease-lubricated or oil-lubricated  from Apollo unit-composed system
  • design versions: motor directly flanged as a block pump with supporting frame or as a version with bearing housing with motor on a common baseplate.
  • Cast iron
  • Cast steel
  • Red bronze
  • Stainles steel
