KSEY / KSEYK

  • KSEY.jpg

    Bild01 - KSEY

  • KSEYK.jpg

    Bild02 - KSEYK

  • KSEYK__1_.JPG

    KSEYK

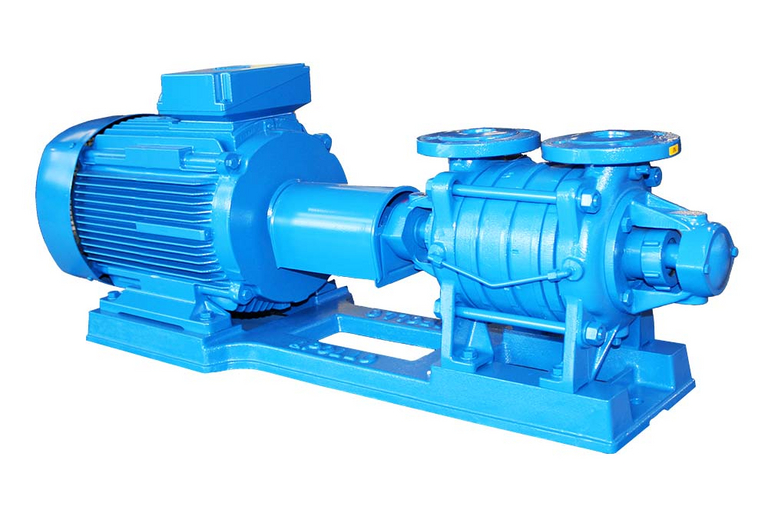

KSEY

Horizontal, self-priming side-channel pump with the ability to pump gas together with the liquid, sectional casing design. The series is marked by compact construction and good suction characteristics.

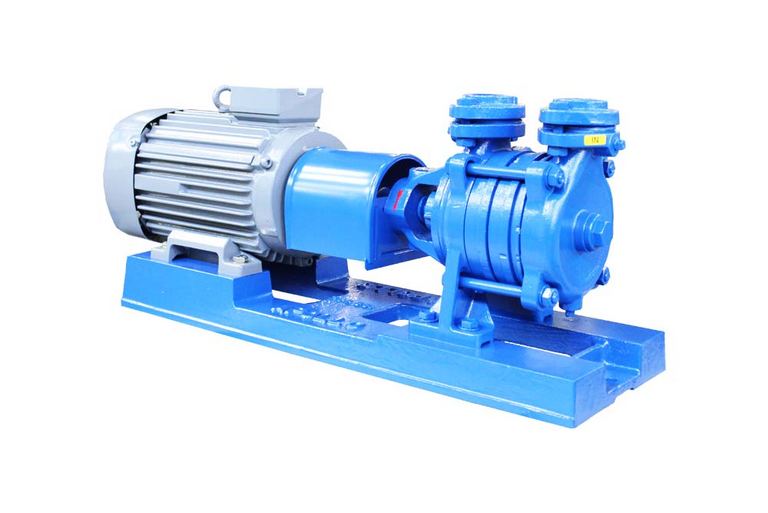

KSEYK

The suction side is without shaft sealing and with liquid lubricated sliding bearing. Preferably suited for difficult suction conditions.

 KSEY / KSEYK
Q (m³/h)20
H (m)160
P (bar)16
T (° C)120

Side channel pumps of the KSEY series are used for pumping clean, neutral and combustible liquids without abrasives:

  • water, condensate
  • solvents, fuel
  • oil
  • acids, lyes
  • hydrocarbon

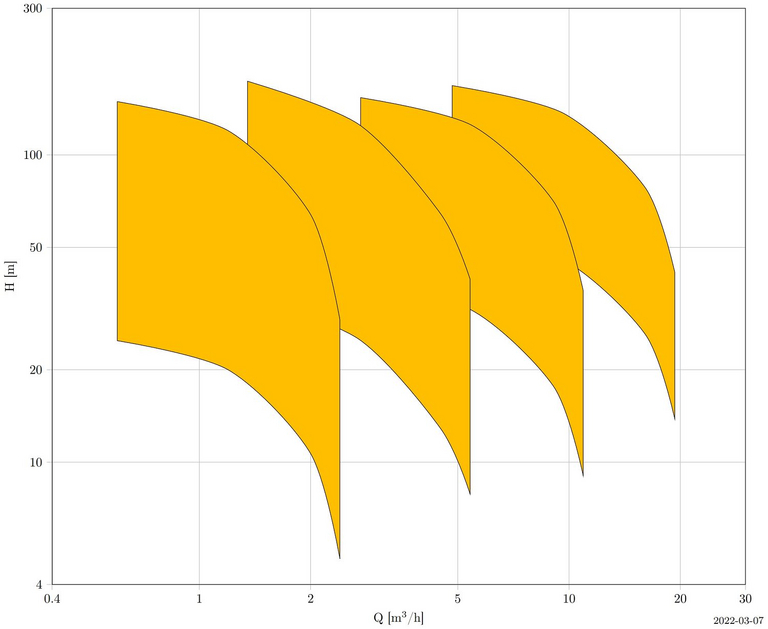

KSEY - characteristic curve
  • Q = 20 m³/h
  • H = 160 m
  • P = 16 bar
  • T =  120 °C
  • according to Apollo standard
  • horizontal, self-priming side-channel pump with the ability to pump gas together with the liquid, sectional casing design
  • compact design
  • good suction behaviour
  • suction and discharge branches are positioned radially vertically to the top
  • oval flange version PN10,  counter flanges with internal thread (single-stage and 2-stage versions)
  • round flange version PN16, connection dimensions according to DIN EN 1092-1  (3-stage and multistage versions)
  • two external grease lubricated grooved ball bearings for most hard application conditions
  • versions with stuffing box or mechanical seal
  • grey cast iron
  • ductile iron
  • stainless steel
