VS4 - KRHV

  • VS4-KRHV.png

    KRHV01

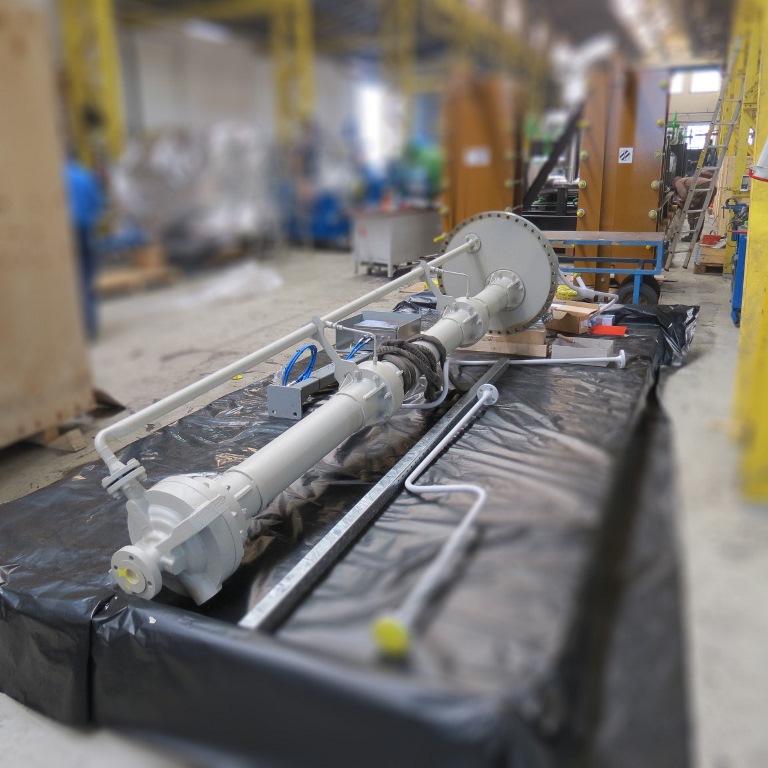

  • KRHV_ONPZ.jpg

    KRHV02

  • KRHV_2402771-18_Siraf__5_.JPG

    KRHV03


Vertical, single-stage volute-casing pumps for wet or dry installation with most different submersion depths up to 8 m.

 KRHV
Q (m³/h)500
H (m)280
P (bar)50
T (° C)+250

The process pump is used for pumping clean, cold, hot, and chemical liquids in the following applications

  • Power stations/energy industry
  • Chemical industry
  • Environmental engineering
  • Process engineering
  • Water supply
Characteristic Curve KRHV
  • Q= 500 m³/h
  • H= 280 m
  • P= 50 bar
  • T= + 250 °C
KRHV quarter cut
  • Vertical volute-casing pumps with most different  submersion depth up to 8 m
  • Shaft on drive side with robust pair of angular ball bearings  of long life being led in the pump in maintenance-free  slide bearings
  • Slide-bearing locations are lubricated by means of liquid to be pumped via lubrication piping.
  • Bearings with oil or grease lubrication, optionally we can provide bearing cooling.
  • grey cast iron
  • ductile cast iron, ADI materials
  • cast steel
  • 12 % chromium steel
  • austenitic steel
  • special alloys
